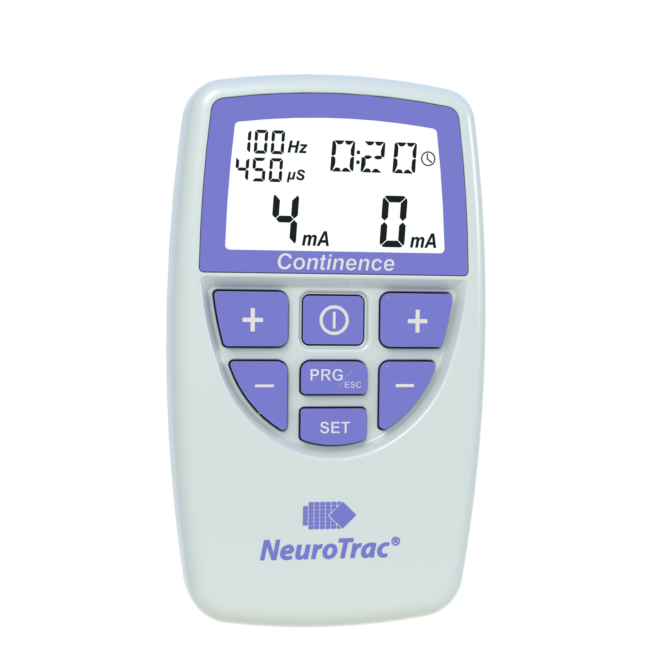

Neurotrac Continence Unit

SKU:
MS006

The NeuroTrac Continence unit is a dual channel muscle stim that has clincal programs loaded.

15 Built-in programmes (3 Customisable).







More Details

The NeuroTrac Continence unit is a dual channel muscle stim that has clincal programs loaded.

15 Built in programmes

3 Customisable programmes

Programme :

P01 PAIN RELIEF,  P02 URGE,  P03 STRESS 1, P04 STRESS 2,  P05 FREQ/URGE 1,  P06 FREQ/URGE 2,  P07 LACK OF SENSITIVITY [25 MIN],  P08 PELVIC FLOOR WORK OUT [60 MIN],  P09 BUILDING UP ENDURANCE CUSTOMISED :

PC1,PC2, PC3 are the customable slots for your own programs.

LCD displays Intensity, rate, pulse width, time and programme Mode

Time setting up to 90 minutes constant current (extends battery life)

Work / rest periods from 2 - 99 seconds

Range: rate: 2 Hz - 100 Hz, pulse width: 50 µS to 450 µS

Alternating and synchronous between channel A and B

Lock mode function for recording time in use and locking the units parameters

Automatic switch off after 4 minutes if unit is not in use



The Neurotrac Continence unit is supplied with the following:

9V Battery

2 x dual conductor lead wires

Operating manual & quick start guide

Carry pouch

More Information
ColourMid Blue
Technical

Dual channel: individually isolated circuits.

Amplitude: 0 - 90 mA into 500 Ohm load; indication only. Actual mA will tend to be less than indicated due to electrode impedance: at 1000 Ohms load (Electrodes in poor condition) the maximum will be limited to 70 mA, at 1500 Ohms load the maximum will be limited to 65 mA.

Type: Constant Current, maximum output voltage 180 Volts +10 / -30 Volts

Waveform: Asymmetrical, rectangular bi-phasic with zero DC current.

Selectable pulse width: 50 μS - 450 μS [2% accuracy].

Pulse Rate selection: in the continuous mode 2 Hz - 100 Hz [2% accuracy].

Time duration of the treatment selectable: 1 minute to 90 minutes.

Low Battery Indicator: If the battery goes below 6.9 volts +/- 0.2 volts the battery symbol will flash on/off once every second.

Open Electrode Detect: If an open circuit is detected at the output of channel A or B the output current will be reset at zero.

Ramp up time 0.3 - 9.9 seconds.

If the battery voltage is below 6.6 (+/- 0.2) volts the unit will not turn on.

Product Dimensions12cm x 6.5cm x 2.5cm
Net Weight0.1Kg
Gross Weight0.5Kg
