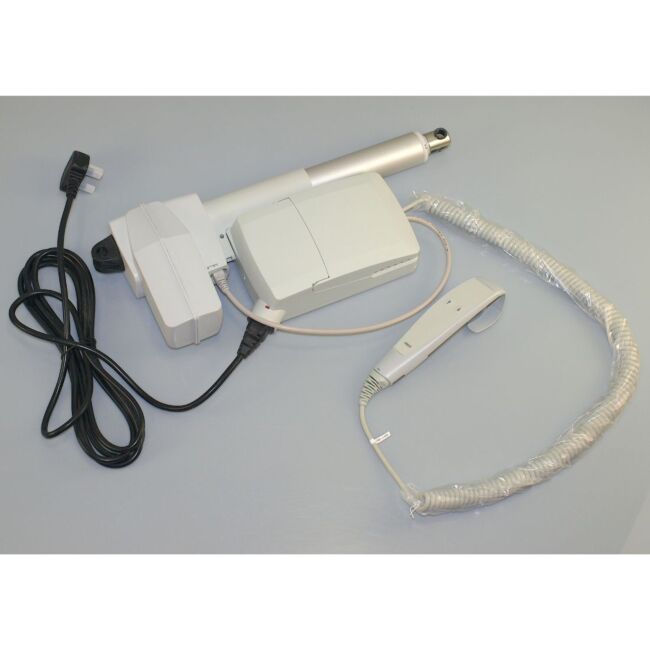

Linak 415 Electric Actuator ,Control Box & Hand controller Kit

Linak Electric Actuator ,Control Box & Hand controller Kit
Box contains : 1 x Actuator, 1 x Control Box, 1 x Mains Lead, 1 x Hand Controller.
These parts are supply only and fitting / diagnostics are not covered with these parts (If you would like us to fit the parts, please contact us to request a quotation to supply & fit the parts). Any parts ordered are subject to a 20% restocking fee if you wish to return these parts. (Terms & Conditions Apply).
Supplied with 1 years Warranty.
Linak Electric Actuator ,Control Box & Hand controller Kit
Box contains : 1 x Actuator, 1 x Control Box, 1 x Mains Lead, 1 x Hand Controller.
These parts are supply only and fitting / diagnostics are not covered with these parts (If you would like us to fit the parts, please contact us to request a quotation to supply & fit the parts). Any parts ordered are subject to a 20% restocking fee if you wish to return these parts. (Terms & Conditions Apply).
Supplied with 1 years Warranty.
| Technical | Actuator Linak DK 6430 Nordborg Type:400402000A000B16+22DB141012002 Item Number :400302-00 Max Load / Push Force: 6000N Power Rating : 24V max 7 A IPX6 In Stroke : 410mm Out Stroke : 610mm Stroke : 200mm Spigot (Back) : 300mm
Control Box Linak DK 6430 Nordborg U in : 100V - 50/60Hz 200VA U out : 30V = 4A Double Insulation Type: CA4+09411ND9000 Item: J11332 I in: Max 2.5A IPX6 Washable W/O : 0104956-1629 Mains Lead Length : 4.36 meter Weight: 3.2kg (total) Hand Controller Dimensions: (L)4.5cm x (W)5cm x (H)20cm Weight: 0.220kg Cable length (Not Stretched) : 76cm
|
|---|---|
| Product Dimensions | (L)41cm x (W)9cm x (H)20cm |
| Net Weight | 3.3kg |
| Country of Manufacture | China |
