£270.00 £225.00
Stock Status
SKU
ACT064

Subject to stock availability, orders are shipped within 2 working days from receipt of order, if this item is not in stock at the time of ordering we will contact you to advice on the delivery time scale as per our standard terms & conditions. Delivery will be via courier or Royal Mail delivery services.

  • We accept Mastercard, VISA & AMEX
  • Finance options available for orders over £2000 + VAT

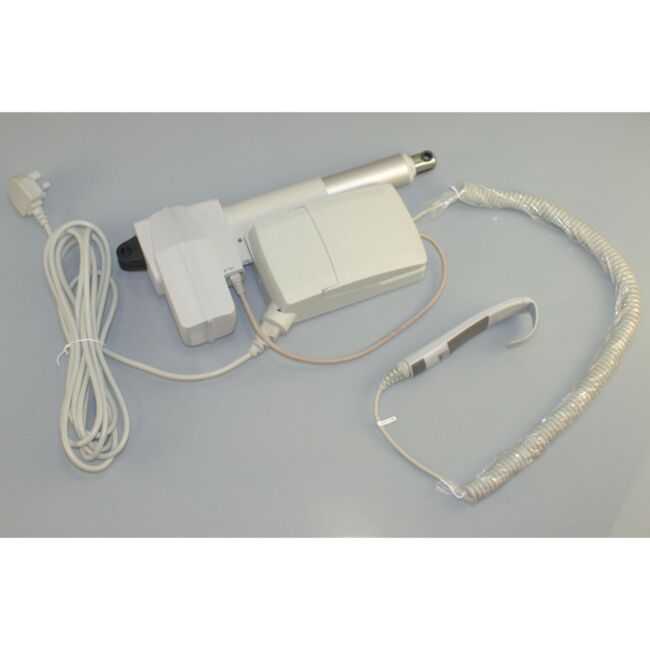

Linak 375 Electric Actuator ,Control Box & Hand controller Kit

SKU:
ACT064

Linak Electric Actuator ,Control Box & Hand controller Kit

Box contains : 1 x Actuator, 1 x Control Box, 1 x Mains Lead, 1 x Hand Controller.

These parts are supply only and fitting / diagnostics are not covered with these parts (If you would like us to fit the parts, please contact us to request a quotation to supply & fit the parts). Any parts ordered are subject to a 20% restocking fee if you wish to return these parts. (Terms & Conditions Apply).

Supplied with 1 years Warranty.







More Details

Linak Electric Actuator ,Control Box & Hand controller Kit

Box contains : 1 x Actuator, 1 x Control Box, 1 x Mains Lead, 1 x Hand Controller.

These parts are supply only and fitting / diagnostics are not covered with these parts (If you would like us to fit the parts, please contact us to request a quotation to supply & fit the parts). Any parts ordered are subject to a 20% restocking fee if you wish to return these parts. (Terms & Conditions Apply).

Supplied with 1 years Warranty.







More Information
Technical

Actuator Linak DK 6430 Nordborg

Type:400402000A000B16+22DB137512002

Item Number : J30397

Max Load / Push Force: 6000N

Power Rating : 24V max 6 A

IPX6

In Stroke : 375mm

Out Stroke : 575mm

Stroke : 200mm

Spigot (Back) : 300mm



Control Box Linak DK 6430 Nordborg

U in : 100V - 240V  50/60Hz 200VA

U out : 30V = 4A

Double Insulation

Type: CA4+09411N09000

Item: J11332

I in: Max 2.5A

IPX6 Washable

W/O : 20104957-0113

Mains Lead Length : 4.36 meter

Weight: 3.1kg (total)

Hand Controller

Dimensions: (L)4.5cm x (W)5cm x (H)20cm

Weight: 0.220kg

Cable length (Not Stretched) : 76cm



Product Dimensions(L)39cm x (W)9cm x (H)20cm
Net Weight3.1kg
Country of ManufactureChina
