New Simplex Single Channel EMG Biofeedback

Order code: BI007

VAT Relief

If you have a disability or long term illness and need an item for personal or domestic use, or if you are buying the item on behalf of someone else who meets these criteria you may not have to pay VAT on the item.

We have marked the products on our website that are eligible for zero rate VAT with this image. VAT exempt Logo

Simply add the item to your basket and at checkout complete the VAT relief form and we will adjust the VAT element if you meet the conditions.



For more details on VAT relief and the conditions required please contact your local VAT office or visit: www.gov.uk and refer to VAT Notice 701/7.

Product Description:

We are pleased to introduce the NEW Simplex unit, which is supplied with the PC Software.

Simplex has a wireless connection to PC Software via bluetooth (up to 10 meters). Bluetooth allows data to be sent to your laptop or PC while you are in motion.

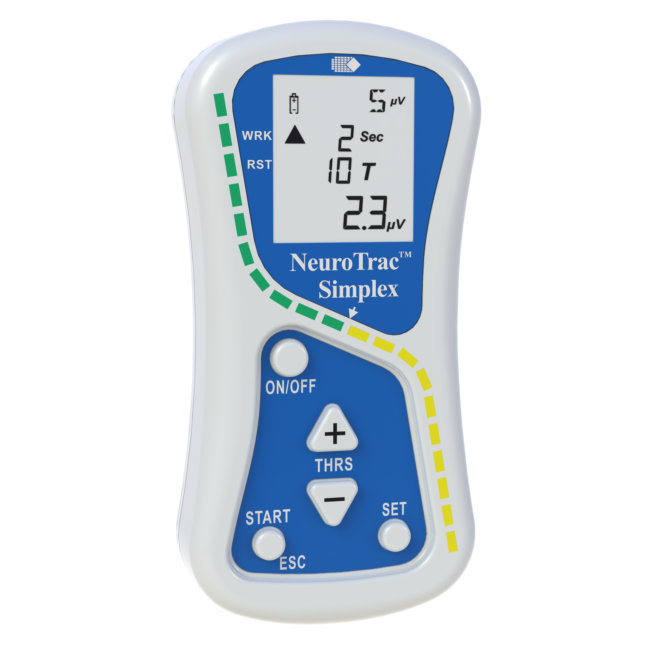

  • The NeuroTrac® Simplex  is a simple to operate low cost single channel EMG Biofeedback device.
  • The NeuroTrac® Simplex is an accurate and sensitive device that measures muscle activity down to as low as to 0.2 μV [Microvolts] and up to 2000 μV. The diverse range enables the device to measure very weak muscle activity. The NeuroTrac® Simplex  will stand upright on a flat surface enabling the user to carry out specific exercises and at the same time view the Biofeedback by way of bright LED lights on the front of the unit. At the end of a session that may entail five trials of 5 seconds work and 5 seconds rest of activity, the LCD screen will automatically display the average muscle readings for the session.
  • The unit can be locked for a certain period so the user cannot amend the treatment parameters such as work/rest time and number of repetitions. When the unit is then unlocked, the number of finished sessions is displayed together with the overall average readings.
  • In addition, the unit can be used with the PC Software supplied. Simplex  has a built-in Bluetooth transmitter which enables a wireless connection for upto 10 meters.
  • Bluetooth allows data to be sent to your laptop or PC while you are in motion.
  • The unit can be used as a continuous EMG visualisation tool. Power on the device and it reads the EMG continuously for as long as battery lasts (20-40 hours). In addition, the unit can be connected to the PC Software (Open Display protocol) which helps to display the graph, produce the statistical summary and store the collected data for further analysis. There is an option to export data to CSV format for Excel, Matlab, etc.




The NeuroTrac® Simplex is intended to be used to:

Improve the speed, strength, toning, accuracy and stability of your muscle contractions.

Use our assessment program to check your performance and track your progress.

Learn to relax tight muscles after exercise.

Gain better control of the muscle.

See your contractions in real time on our PC software using Bluetooth data connection and keep good record of your training progress.

Discover the engaging and rewording world of our performance biofeedback games.

Suitable for diagnosing, monitoring and treating a wide range of muscle problems.

Optional multilingual computer database system

Structured protocols for consistency of patient progress reports (software)

Used as a EMG biofeedback training aid or diagnostic tool

Measures EMG from 0.2µV to 2000µV

Accurately Designed for a wide range of physiotherapy applications such as incontinence, shoulder and neck pains, patello femoral pain, repetitive strain injury, stroke plus much more

Used as a learning tool for both patients and therapists with emphasis on improving rehabilitation techniques

Produces and prints comprehensive patient progress reports of work/rest averages, onset contraction and muscle release times, peak values, work/rest average deviations.



Technical Specification:
  • Wireless connection (Bluetooth) to NeuroTrac Software v5.0 or latest. Software included.
  • Single Channel Digital EMG Unit
  • Accurate Range: 0.2µV to 2000µV
  • Sensitivity: 0.1µV RMS
  • LEDs display EMG level clearly and easily
  • LCD displays numerical EMG reading and work/rest countdown
  • Selectable band pass filter to filter out heart rate
  • Work / Rest periods: 2 to 99 seconds
  • Number of trials: 1 to 99
  • Constant Current (extends battery life)
  • Range: Rate: 2 Hz - 200 Hz, Pulse Width: 50 µS to 300 µS



Product Dimensions:14cm x 6cm x 3.5cmPackaged Dimensions:24cm x 18cm x 5cm Weight:0.2kg
Delivery Details:
Free Delivery - Normally 5 -7 working days

Availability: In stock

Price £179.00 +VAT ( £214.80 inc. VAT )
1x New Simplex Single Channel EMG Biofeedback (Order code: BI007) +£179.00 (+£215 Incl. VAT)

Details

We are pleased to introduce the NEW Simplex unit, which is supplied with the PC Software.

Simplex has a wireless connection to PC Software via bluetooth (up to 10 meters). Bluetooth allows data to be sent to your laptop or PC while you are in motion.

  • The NeuroTrac® Simplex  is a simple to operate low cost single channel EMG Biofeedback device.
  • The NeuroTrac® Simplex is an accurate and sensitive device that measures muscle activity down to as low as to 0.2 μV [Microvolts] and up to 2000 μV. The diverse range enables the device to measure very weak muscle activity. The NeuroTrac® Simplex  will stand upright on a flat surface enabling the user to carry out specific exercises and at the same time view the Biofeedback by way of bright LED lights on the front of the unit. At the end of a session that may entail five trials of 5 seconds work and 5 seconds rest of activity, the LCD screen will automatically display the average muscle readings for the session.
  • The unit can be locked for a certain period so the user cannot amend the treatment parameters such as work/rest time and number of repetitions. When the unit is then unlocked, the number of finished sessions is displayed together with the overall average readings.
  • In addition, the unit can be used with the PC Software supplied. Simplex  has a built-in Bluetooth transmitter which enables a wireless connection for upto 10 meters.
  • Bluetooth allows data to be sent to your laptop or PC while you are in motion.
  • The unit can be used as a continuous EMG visualisation tool. Power on the device and it reads the EMG continuously for as long as battery lasts (20-40 hours). In addition, the unit can be connected to the PC Software (Open Display protocol) which helps to display the graph, produce the statistical summary and store the collected data for further analysis. There is an option to export data to CSV format for Excel, Matlab, etc.




The NeuroTrac® Simplex is intended to be used to:

Improve the speed, strength, toning, accuracy and stability of your muscle contractions.

Use our assessment program to check your performance and track your progress.

Learn to relax tight muscles after exercise.

Gain better control of the muscle.

See your contractions in real time on our PC software using Bluetooth data connection and keep good record of your training progress.

Discover the engaging and rewording world of our performance biofeedback games.

Suitable for diagnosing, monitoring and treating a wide range of muscle problems.

Optional multilingual computer database system

Structured protocols for consistency of patient progress reports (software)

Used as a EMG biofeedback training aid or diagnostic tool

Measures EMG from 0.2µV to 2000µV

Accurately Designed for a wide range of physiotherapy applications such as incontinence, shoulder and neck pains, patello femoral pain, repetitive strain injury, stroke plus much more

Used as a learning tool for both patients and therapists with emphasis on improving rehabilitation techniques

Produces and prints comprehensive patient progress reports of work/rest averages, onset contraction and muscle release times, peak values, work/rest average deviations.



Additional Information

SKU BI007
Card Only N/A
Technical Specification
  • Wireless connection (Bluetooth) to NeuroTrac Software v5.0 or latest. Software included.
  • Single Channel Digital EMG Unit
  • Accurate Range: 0.2µV to 2000µV
  • Sensitivity: 0.1µV RMS
  • LEDs display EMG level clearly and easily
  • LCD displays numerical EMG reading and work/rest countdown
  • Selectable band pass filter to filter out heart rate
  • Work / Rest periods: 2 to 99 seconds
  • Number of trials: 1 to 99
  • Constant Current (extends battery life)
  • Range: Rate: 2 Hz - 200 Hz, Pulse Width: 50 µS to 300 µS



Product Dimensions 14cm x 6cm x 3.5cm
Packaged Dimension 24cm x 18cm x 5cm
Net Weight 0.2Kg
Gross Weight 0.6Kg
