Stock Status
SKU
UT071G

Subject to stock availability, orders are shipped within 2 working days from receipt of order, if this item is not in stock at the time of ordering we will contact you to advice on the delivery time scale as per our standard terms & conditions. Delivery will be via courier or Royal Mail delivery services.

1cm² Intelect Mobile 2 Therapy Ultrasound Head Add to Wish List SKU: UT071
£330.00 £275.00
2cm² Intelect Mobile 2 Therapy Ultrasound Head Add to Wish List SKU: UT072
£330.00 £275.00
5cm² Intelect Mobile 2 Therapy Ultrasound Head Add to Wish List SKU: UT073
£330.00 £275.00

  • We accept Mastercard, VISA & AMEX
  • Finance options available for orders over £2000 + VAT

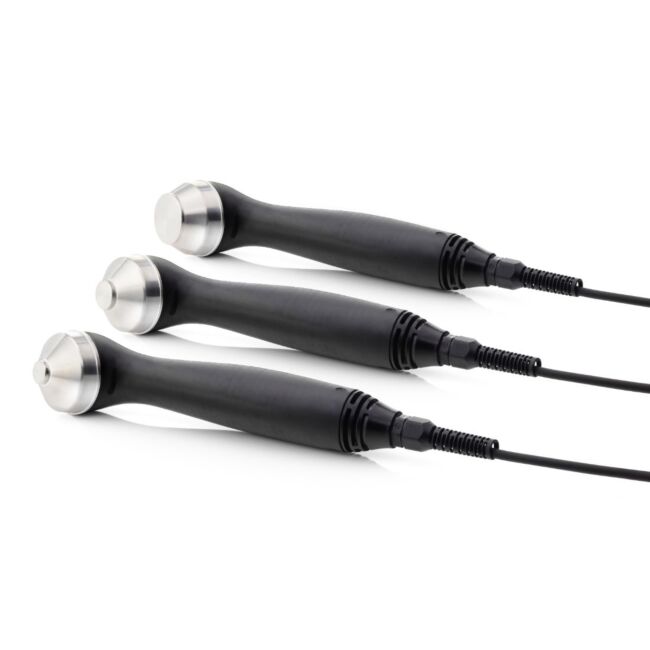

Chattanooga Intelect Mobile 2 Ultrasound Heads

SKU:
UT071G

Replacement Treatment Heads for the Chattanooga Intelect Mobile 2 Ultrasound.

These heads will only work with the Intelect Mobile 2 Ultrasound Unit, Combination Unit and Advanced Therapy System.

More Details

Replacement Treatment Heads for the Chattanooga Intelect Mobile 2 Ultrasound.

These heads will only work with the Intelect Mobile 2 Ultrasound Unit, Combination Unit and Advanced Therapy System.

More Information
Technical

Ultrasound Applicator Size

1cm² 2cm² 5cm²
 1MHz  3MHz  1MHz  3MHz  1MHz  3MHz
 Effective Radiating Area ERA INTL (cm²)  1  0.9  1.5  1  2.5  2.7
 Max Output power in Continuous mode  2W  1.8W  3W  2W  5W  5.4W
 Max Output power in Pulsed mode  3W  2.7W(*)  4.5W  3W  7.5W  8.1W
 Max Amplitude in Continuous mode  2W/cm²  2W/cm²  2W/cm²  2W/cm²  2W/cm²  2W/cm²
 Max Amplitude in Pulsed mode  3W/cm²  3W/cm²  3W/cm²  3W/cm²  3W/cm²  3W/cm²



Country of ManufactureFrance
