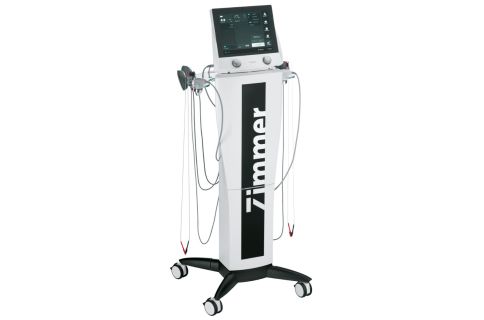

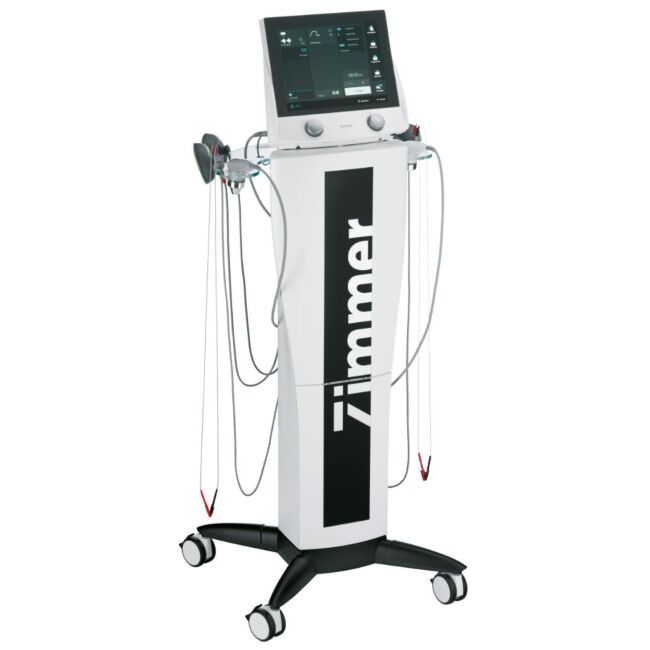

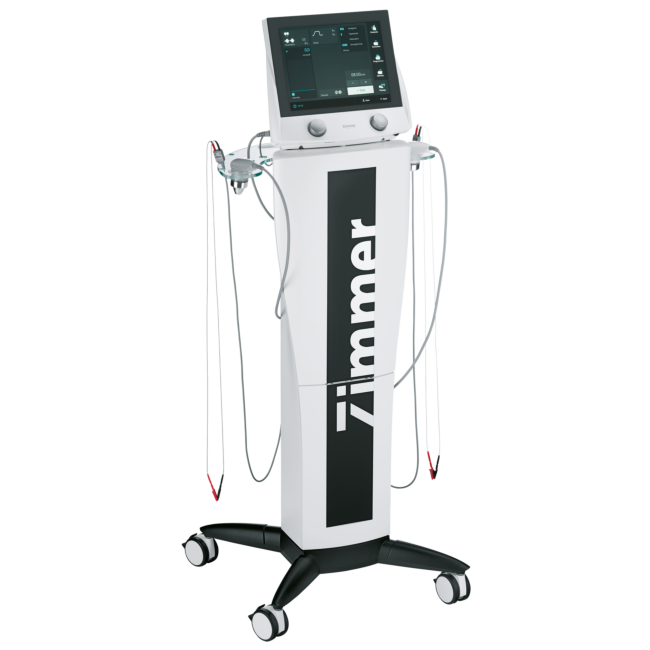

Zimmer PhySys Combination Unit

SKU:
CT040

Physiotherapy at your fingertips, Over 45 years of experience in physiotherapy at your disposal. This innovative device designed for electrostimulation, ultrasound therapy and combined therapy has up to date colour touch screen technology that is quick, simple and user-friendly. The PhySys provides lots of features for successful treatments in a fantastic design.

More Details

Physiotherapy at your fingertips, Over 45 years of experience in physiotherapy at your disposal. This innovative device designed for electrostimulation, ultrasound therapy and combined therapy has up to date colour touch screen technology that is quick, simple and user-friendly. The PhySys provides lots of features for successful treatments in a fantastic design.

Appliance

  • Pain Treatment

  • Muscle Relaxing Therapy

  • Muscle Toning Therapy

  • Metabolism Stimulation

PhySys broadens the range of all requested therapies for optimized treatments with its electrostimulation and ultrasound therapy programs in mono or dual channels modes.

Combined Treatment & SonoSwing

PhySys provides preset programmes related to effects for quick and easy use of the effective combination of ultrasound and electrostimulation.

Patent SonoSwing: Multifrequency heads provide both frequencies (0.8 MHz and 2.4 MHz) simultaneously in parallel with a selected ratio. The user can therefore determine exactly the desired treatment depth. These features enable the therapist to focus the treatment precisely on the plan for achieving pain reduction, or hyperaemia or for improving restoration processes by increased metabolism.



pdf
(Size: 1.5 MB)
More Information
ColourWhite
Technical

Technical data

Electrostimulation: Channels 2, completely independent programmes (Intensity and Parameters)

Electrostimulation: Channel selection

  • MonoStim / 1 programme – 1 channel
  • TwinStim / 1 programme – 2 channels
  • DuoStim / 2 different programmes – 2 channels

Electrostimulation: Waveforms
Galv., DD, LF, biphasic, MF, MF/LF, interferential, etc.

Ultrasound heads

  • Multifrequency heads
  • 5 cm²
  • 1 cm² (optional)

Frequencies

  • 0,8 MHz: deep effect /
  • 2,4 MHz: superficial effect
  • SonoSwing

Maximum power emission Ultrasound
3 W/cm² for 5 cm² head

Number of programmes Ultrasound
9 programmes

Ultrasound Coupling
Audio and 2 colours optical

Combined Treatment
Preset programmes for desired effect or individualy selectable

Memory / Update
SD-card (4GB) for indication menu memory
Free memory entries: therapy 120 / diagnostic 120 / favourites 120

Dimensions (HxWxL)

  • PhySys with column:  138 cm x 53 cm x 52 cm
  • PhySys:                         30 cm x 35 cm x 20 cm
  • Column:                         109 cm x 53 cm x 52 cm

Intended use and indications not valid for the USA.

Product Dimensions33cm x 23cm x 10cm
Net Weight5kg
Country of ManufactureUnited Kingdom
